Documentation

Table of content

• Requirements
  • Home Assistant general
  • Port
  • HTTP or HTTPS
  • SSL Certificates
  • Android
• Authentication
• UI configuration
  • Lovelace UI
• Log Viewer

Requirements

Home Assistant general

To check if you are using right configuration for app, try to access your Home Assistant web interface with the same protocol (http:// or https://), the same domain or IP and port. If it is not loading – the app will not work as well.

To connect to your Home Assistant instance with HA Client you need http and websocket_api components to be enabled as well as remote access configured. If you are using frontend component (Home Assistant web interface actually) websocket_api is enabled by default and http component is already configured on your server, but still you need to double check.

In other cases changes should be made to you configuration.yaml:

http:
  api_password: #some password here
  base_url: #your domain for Home Assistant instance
  ssl_certificate: /ssl/fullchain.pem #ssl configuration to access your HA by https
  ssl_key: /ssl/privkey.pem

websocket_api:

Port

By default your Home Assistant is using port number 8123. But to access your instance from outside of your home network, probably you configured some port forwarding rules on you router. If you forward some other port from outside to 8123 port on Home Assistant IP, you need to use that port instead.

If you are accessing your web interface without port, then you need to try port 80 or 443 in app.

HTTP or HTTPS

It is not required to use secure connection. Just remember: if you are accessing your web interface with http, you need to switch “Use ssl” off in app settings as well.

But if you are using ssl (accessing web interface with https://) – your certificate should be valid (not self-signed).

SSL Certificates

The main requirement is that your SSL Certificate should not be self-signed. Most certificates from providers like Let’s Encrypt will work. There is known issue with RapidSSL certificate, but this problem is common not only for HA Client.

Using of self-signed certificate is not possible for now and this is a restriction of Flutter’s WebSocket implementation. To stay up to date with this issue solving or possible workarounds please follow this issue in GitHub.

Android

Minimum supported Android API level is 21. That’s Android 5.0 and higher.

Authentication

Starting from Home Assistant 0.78.0 api_password is a deprecated way to authenticate third party apps and services. You should use long-lived access tokens instead. To make HA Client use access token to authenticate you need:

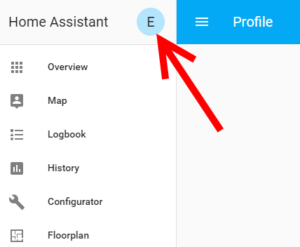

1. Go to your Home Assistant web interface and open your profile settings (just click on your user picture in the top part of left menu)

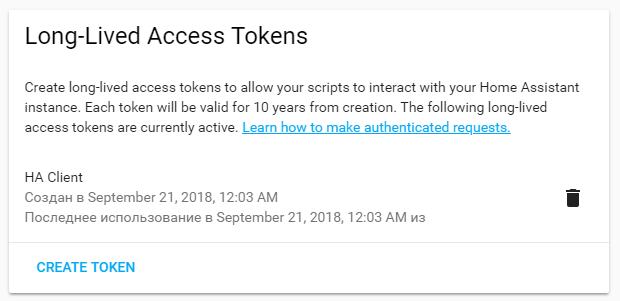

2. Scroll down to Long-lived access tokens section and click Create token

3. Give it a name HA Client as it will be used only for HA Client app (it is recommended to use different access tokens for different apps and services)

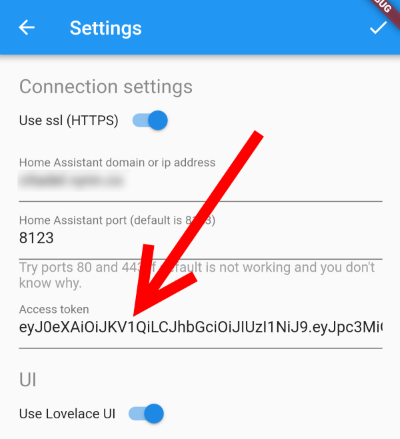

4. Click Ok and copy newly generated access token somewhere in a safe place or directly to Connection settings of HA Client
